5G Communication PCB

◆Layer Count：22L
◆Material：TU-883
◆Board Thickness：3.2mm±0.2mm
◆Min.Trace/Space：3/3mil
◆Copper Type: HVLP
◆Via-in-Pad：VIPPO
◆Back Drill:12 sets
◆Impedance:20 lines

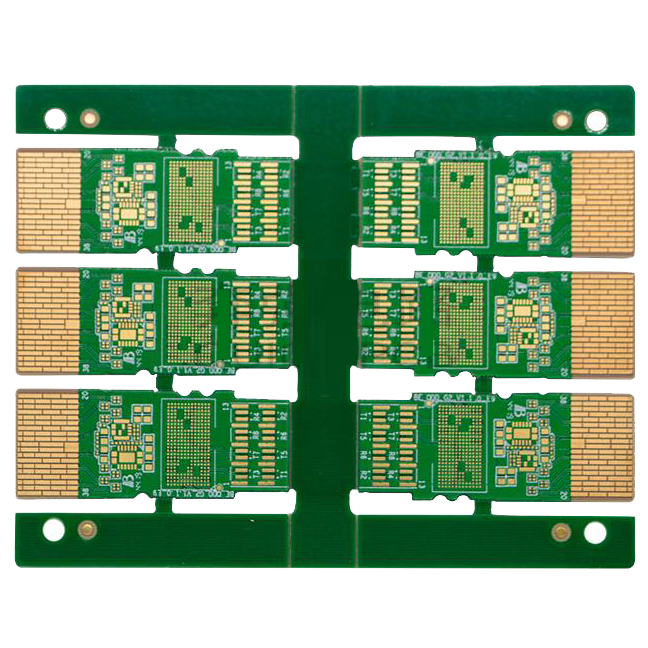

Optical module products

◆Layer Count：10L
◆Product Model：400Gbps QSFP-DD
◆Material：M6（R-5775）
◆Finished Thickness：1.0±0.075mm
◆Min.Trace/Space：3/3mil
◆Micro vias：L1-L2,L2-L3,L8-L9,L9-L10
◆Buried vias：L3-L8
◆Plug shape tolerance：±0.05mm
◆Copper filled depression：less than 15um
◆Surface Finish：ENEPIG + Gold Finger
